Waterproof linear motion potentiometer : Conductive plastic & wirewound elements.

Model LO10-stroke-ohms

• WATERPROOF
• Designed for Harsh Environments
• xxx-Electrical Strokes-100,150,200 & 250 mm
• Resistance range : 1K, 2K,5K ,10K & 20K
• Independent linearity : 0.3% (0.1% available)
• Power rating : 2.5 to 4 watts watts
• LP-xxxF15 pdf

• Electrical Strokes: 30,50 ,100 mm
• Resistance value : 100 to 20K ohms.
• Anodized Aluminum Housing,
• Stainless Steel Shaft
• Power Rating: 0.5 to 1 Watt
• LO10 pdf
• (OF10LP)

• Electrical Strokes: 50 ,100 & 200 mm
• Resistance value : 100 to 50K ohms.
• Anodized Aluminum Housing,
• With connector
• Power Rating: 0.75 to 2 Watt
• LO20C pdf
• (OF20LP)

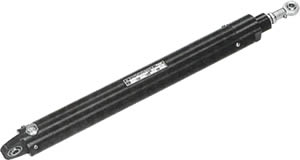

• Electrical Strokes:100, 200 & 300 mm
• Waterproof connector
• Spherical ball ends
• Resistance value : 100 to 50K ohms.
• Anodized Aluminum Housing,
• Stainless Steel Shaft
• Power Rating: 0.75 to 2 Watt
• LO40 pdf
• (OF40LP)
