Potentiometer : Contactless. Extremely long life. Limited electrical angle.
|
|
- Aluminum Housing..
- Life Expectancy: 100,000,000 turns
- Linearity Tolerance: ± 0.50% standard
- Applied voltage : 5V D.C.±10%
- Effective electrical angle : ±45°(90°)
- Mechanical Angle: 360º
- Power Rating: 0.5 Watt
- Servo#SK22S
|
|
|
- 360°endless mechanical rotation HSM22E
- Effective electrical angle : ±45°(90°)
- Independent linearity : ±3%
- Applied voltage : 5V D.C.±10%
- Resolution : Essentially infinite

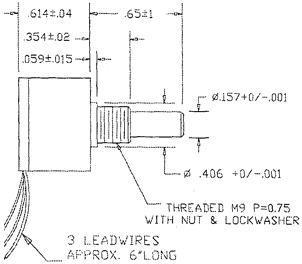

- With 3 mm dia. shaft & 22 mm dia. housing
- Servo#SK22ES
|
|
|
